Weighing Terminals for Hazardous Areas

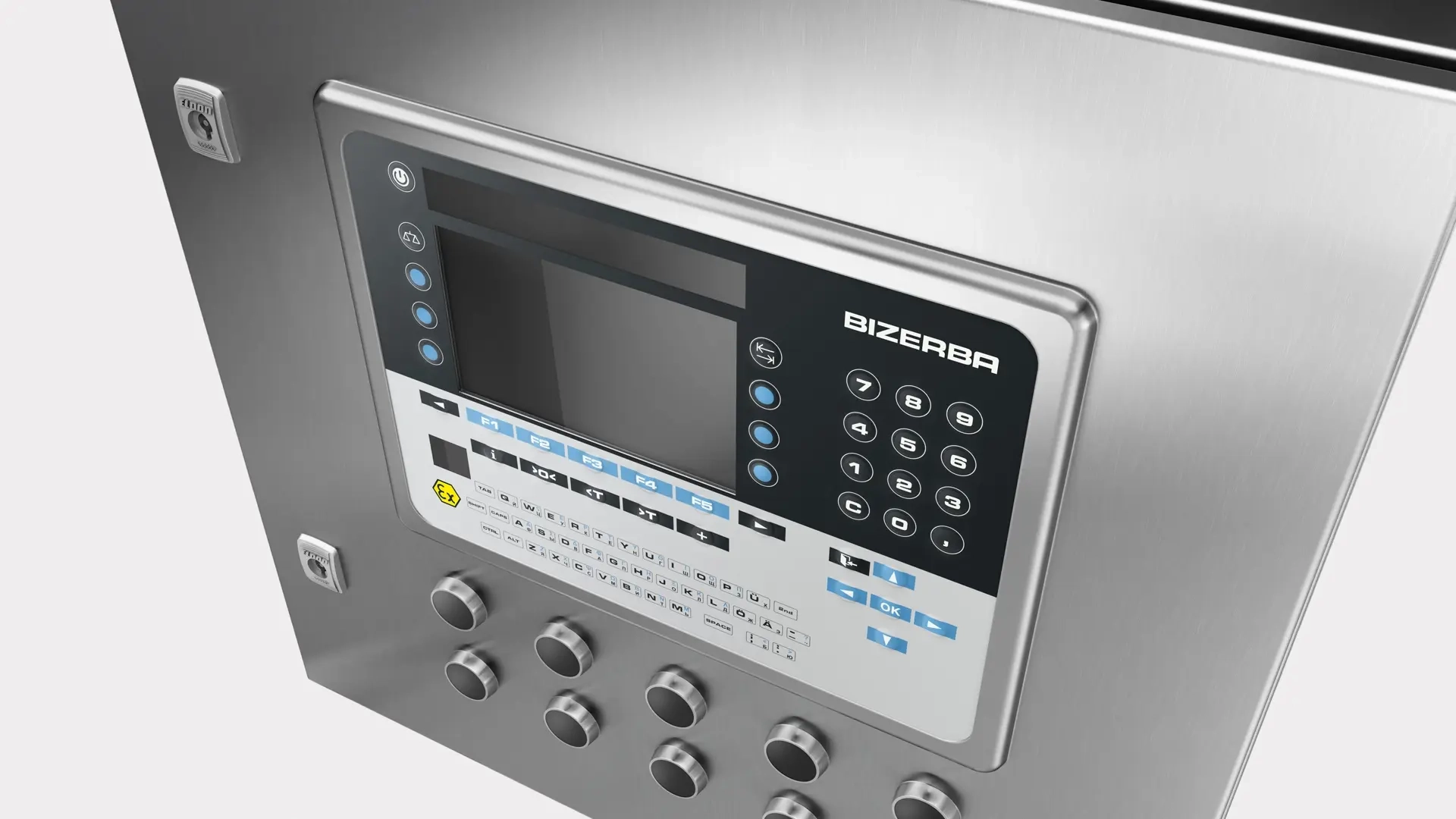

iS50-Ex

Safely and quickly apply a broad spectrum of software solutions. The robust weighing terminal reliably meets the requirements of the ATEX and IECEx directives in Ex zone 1/21. Its further strengths are: Easy data input and a large 7" full graphics display.
The iS50 Ex can be customized to your needs via the integrated Soft-PLC, also in the Ex zone 1/21. Because the weighing terminal is freely programmable thanks to Codesys. Due to its numerous interfaces and software solutions you can benefit from a broad application spectrum: Filling and counting can be reliably and precisely performed as well as tolerance control, for example, even in a harsh production environment. The robust and tight stainless steel housing offers you high protection against water and dust. iS50-Ex is also impressive in terms of its ergonomics: The large 7" full graphics display provides you with a good process overview. Via the alphanumeric keyboard you easily and quickly enter, for example, production data.
These Products Might Also Interest You:
The compact weighing terminal iS25-Ex offers you full functions in Ex zone 1/21.
Benefit from reliable and precise results – even in case of time sensitive applications. Fast data transfer and efficient handling ensure smooth processes. An example: The visual tolerance control with LED traffic light function. One of numerous advantages of the easy-to-integrate iS25-Ex.
The iS30-Ex offers you more freedom in Ex zones.
Flexible in use and location this compact weighing terminal also impresses in terms of ease of use. An example: Optimal view with the large full graphic display. The broad range of interfaces and software programs guarantees efficient production processes and a constantly high product quality. Safe, precise and reliable.
Weighing terminal iS30-Z2
With its compact design and a large fully graphic display, this terminal impresses in all application areas

Highlights

  • Stainless steel housing, class of protection IP65
  • Free programmability thanks to Codesys and the development kit
  • Display color indication during weighing with tolerance control
  • 24-key membrane keyboard and full-fledged QWERTY keyboard: Numeric keypad, navigation and function keys, keys for the most important weighing functions
  • Many interface options: RS232, TTY, Ethernet, Profibus DP/intrinsically safe, analog output/only power output and PIO 4/4 or 8/8
  • Metrologically approved data storage by default: Logs and stores weighing data in accordance with the Weights and Measures Act

Product images and technical information may differ and may not be available in your country.

Areas of Use

  • The Ex weighing terminal is designed for hazardous areas. It establishes weight data, controls components such as dosing systems and records all operating data. In addition to weighing functions, it provides programs for the following applications:
    • counting
    • measuring
    • Recording of statistical data in compliance with prepack regulations
    • Tolerance control

Details & Options

  • Data, measuring and power cable
  • Built-in housing
  • Column
  • Battery pack version
  • 24 V version
  • Protective hood
  • Ethernet service cable

SpecificationFactsDetails
Voltage variants 100 - 240 V
24 V
24 V 		50 - 60 Hz, AC
AC/DC
DC, akku
Verificationable ☑
Protection class IP65
Interfaces I/O Signals
WLAN
Profibus DP
Profinet-IO
RS232
Analog output
Ethernet
TTY
Temperature range -10 °C to +40 °C Operation
Installation type Table
Wall
Keyboard properties Folientastatur: QWERTY-Tastatur
Dimensions (L x W x H)/(D x W x H) 121 x 344 x 254 mm
Operating system Windows CE
Weight 8 kg
Software-Applications weighing
counting
tolerance control
statistics
one-component dosing
price calculation
Codesys Webvisu
Development Kit
Supply medium Mains connection
Display properties fully graphic colour display
Accuracy class III
II
Weighing range depending on load receptor
Material Stainless steel 1.4301
Display resolution 800 x 480
Approval information Dust: II 2D Ex tb [ib] IIIC T80°C Db IP65
Gas: II 2G Ex eb ib [ib] mb IIC T4 Gb
R61 = AGFI, Automatic grafimetric filling instrument
Scale connections analogous
digital-ex-ADW
Explosion safety ATEX Zone 1/21
Show More +
For Take Away

Downloads

You can find operating instructions, software updates, licenses, service requests for your personal device in the Bizerba customer portal.
Imagebrochure Service EN(4 MB)
Factsheet Is50 EX Industrial Weighing Terminal EN(271 KB)
