Weigh price labeler

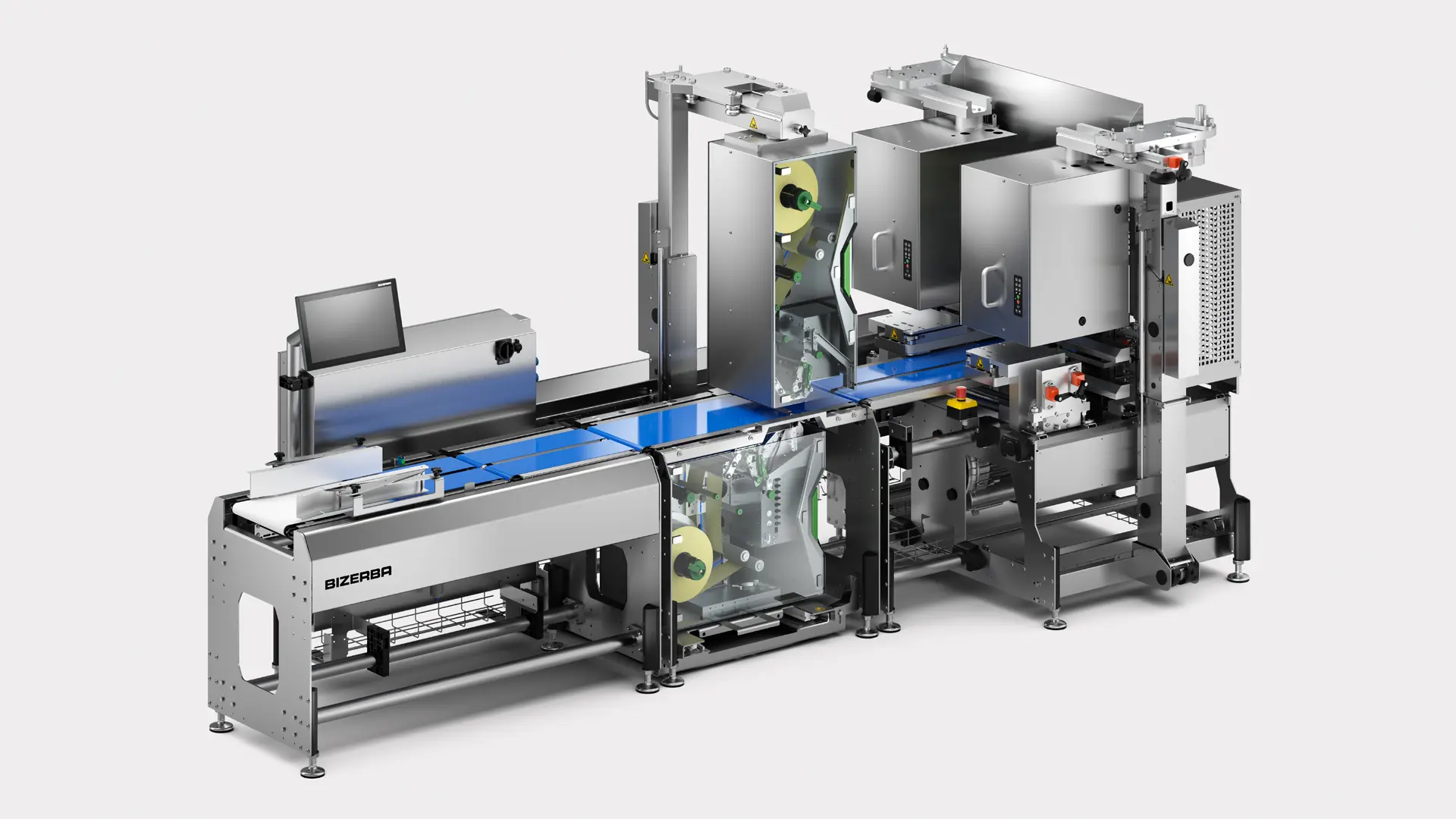

GLM-I with C-Wrap Applicator

Experience the future of labeling with the GLM-I C-Wrap. This state-of-the-art system combines our many years of experience in label application over three sides (C-Wrap). The result is a high speed system which optimally meets industrial requirements in the food sector.

With the GLM-I C-Wrap, labels can be applied to three sides of your product. Depending on requirements, the label can be positioned at the side or in the center for best presentation. The large C-Wrap labels provide plenty of space for your advertising messages highlighting your products in an optimal way. In alternating operation with two labelers, label rolls can be changed without stopping the system. This significantly reduces set-up times and ensures uninterrupted package throughput. The system also allows classic top/bottom weigh price labeling by integrating additional top or bottom labelers. This flexible GLM-I G5 120 C-Wrap is a versatile solution for your labeling requirements. Benefit from a system which not only sets new standards in speed but also in precision and flexibility. With the GLM-I C-Wrap you will be well prepared for the challenges of the modern food market.

Highlights

  • Output up to 120 packages/minute
  • Control of additional top/bottom labelers
  • Saving function for thermal transfer ribbon
  • Plug-In® label function [automation at highest level, insert label roll and start. Via the Plug-In® label (label roll with data matrix coding on the back) automatic label verification and machine configuration is carried out.]
  • Printing and processing of any one and two-dimensional standard barcodes, among other things data matrix and QR code
  • Remote support

Product images and technical information may differ and may not be available in your country.

Details & Options

  • LabelSecure T basic (visual check of packages and labels)
  • Thermal transfer device – EcoMotion printer

  • Applicators: Air-jet, piston, rotary, Rejection systems

    belt and C-Wrap applicator

SpecificationFactsDetails
Protection class IP20 (printer)
IP54 (scale, transport, control cabinet)
Maximum load 10kg
Memory 8 GB
Installation type Floor
Belt dimensions (L x W) min. 400 x 300mm bis max. 2194 x 300mm
Ambient air humidity 20-90% non-condensing
Conveyor belt height 770 - 900mm (optional 850 - 1000mm , 950 - 1100mm)
Conveying direction Wahlweise links/rechts und rechts/links
Product Dimensions Range (L x W x H) min. L 80 x B 50 x H >20 mm bis max. L 680 x B 300 x H 150 mm
Operating system Embedded
Labeling performance max. 120 ppm
Resolution 8 dot/mm (optionally 12 dot/mm)
Accuracy class Y(a)/XIII(1)
Installation area (L x W) 3680 x 2864 x 1713mm
Barcode variations Code 128
Code 2/5 int. Code 39
Data Matrix
EAN/UPC 13
EAN/UPC 128
EAN/UPC 8
GS1 Data Bar
GS1 DataBar Omni
GS1-128
PDF417
Codice 39
PDF417 con AI
Kod QR
Label roll Kerndurchmesser 76 mm , Außendurchmesser 300 mm
Random access memory 8 GB
Voltage variants 400 V
208 V
50 Hz
60 Hz
Verificationable
Label size min. B 40 x L 125mm bis B 120 x L 420mm
Interfaces Ethernet (TCP/IP)
RS232
RS422
Temperature range 14 °F
32 °F to 104 °F
Storage
Operation
Dimensions (L x W x H)/(D x W x H) 3680 x 1692 x 1713mm
Thermal transfer ribbon Kerndurchmesser 25,4 mm , Außendurchmesser 81 mm
Label width 120 mm
Printing speed max 300 mm/s
Reject systems Lift/drop flap system
Mechanical pusher
Print width 104 mm
Applicator C-Wrap
Printing technology Thermodirekt (optional Thermotransfer)
Display properties 16" Farb-Touchscreen
Weighing range 3/6 kg
10 kg
6 kg
6 kg
6/10 kg
d=1/2 g
e=2 g
e=1 g
e=2 g
e=1/2 g
Max. conveyor belt speed 88m/min.
Material stainless steel
Vision system LabelSecure T can be integrated
