Productafhandelingssysteem

Unit maker TU 100

For the formation of pre-defined package units downstream of a Bizerba labeling system

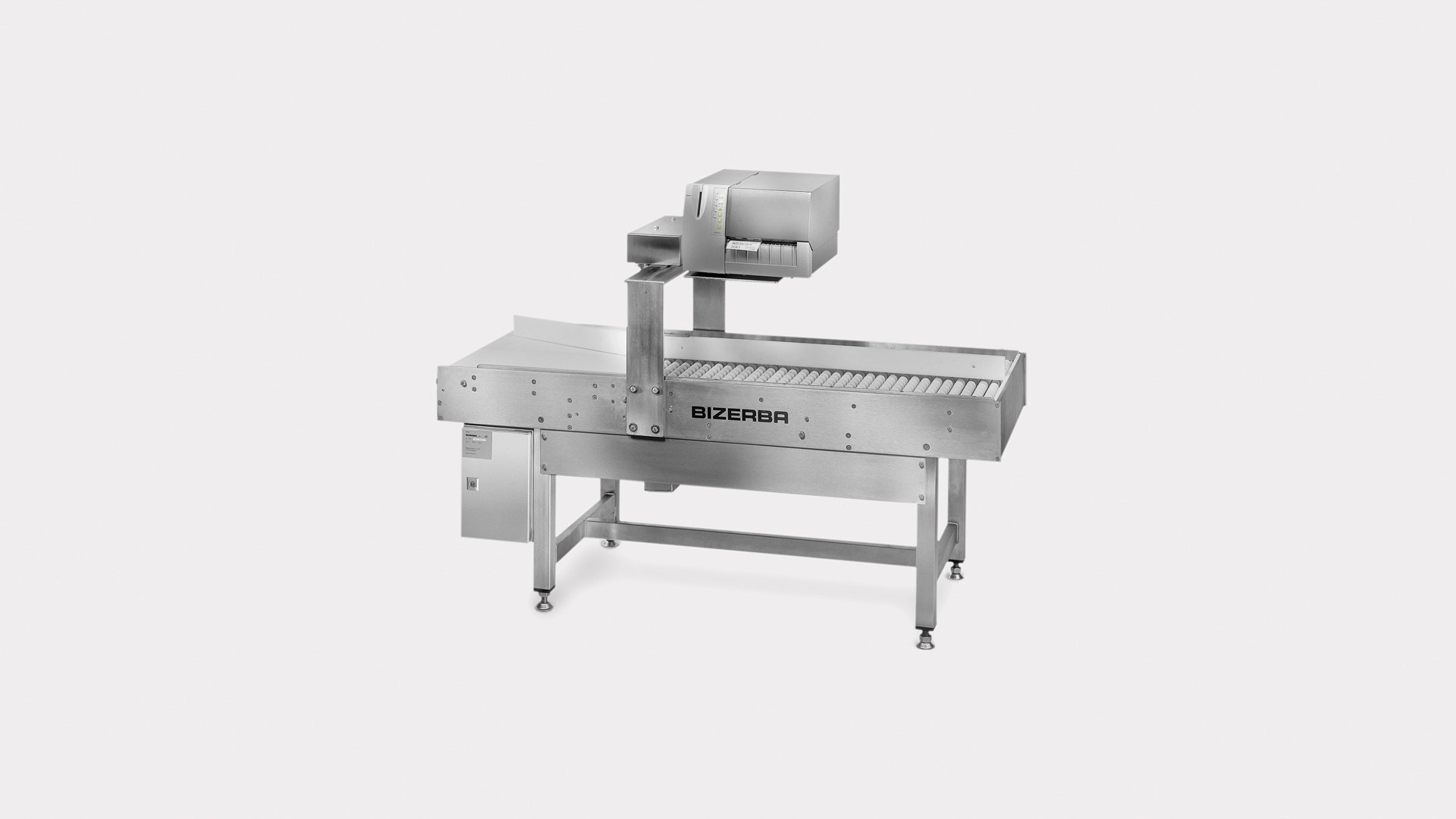

The fully automatic TU 100 unit maker consists of an electrically driven, two-part package removal station with an electro-pneumatic diverter arm. It makes units according to predefined criteria, optimizing the packing process and the control of sum labels for the packages. Up to 100 packages per minute are possible.The TU 100 can be optionally fitted with a roller conveyor or a belt conveyor. (optional)
Deze producten kunnen u ook interesseren:
Linienvereiniger LCE
Optimiert das Packungshandling in Materialfluss-Systemen

Hoogtepunten

  • Formation of packaging units after predefined piece number or weight
  • up to 100 packages per minute
  • for products with an individual weight of up to 8 kg
  • optimizes work flows

Productafbeeldingen en technische informatie kunnen afwijken en zijn mogelijk niet beschikbaar in uw land.

Toepassingsgebieden

  • Ideal for the shipping area for commissioning of packaged goods

Details en opties

For an optimal workflow the TU 100 is fitted with an installation plate for a total printer which after reaching a pre-defined total dispenses at the removal station the relevant total label for the packaging unit.

  • Roller conveyor
  • Belt version
  • GLP label printer

SpecificatieFeitenDetails
Voltage variants 230 V
110 V 		50-60 Hz
60 Hz
Supply medium Mains connection 100 - 240 V, 50/60 Hz
compressed air 6 bar
power supply 230 V / 50-60 Hz
110 V / 60 Hz
Interfaces RS 485 SBUS for connection of Gx devices (PROFIBUS)
RS232
TTY EDP Connection Gx Devices
RS422
Temperature range 32 °F to 104 °F Operation
Ambient air humidity 20-90% non-condensing
Dimensions (L x W x H)/(D x W x H) 1525 x 590 x 1200 mm
Product Dimensions Range (L x W x H) 40 - 500 x 40 x >1 - 250 mm
40 - 500 x 250 x >1 - 250 mm
Labeling performance max. 100 packages/min (package output is dependent on weight, package type)
